NEW QUESTION # 19

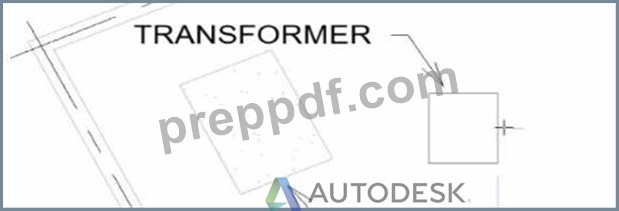

Refer to exhibit.
An electrical designer wants to place electrical equipment on the pad.
How should the component be aligned to the pad before placement?
- A. Start the Align tool. tab to select the object edge, and then select the equipment edge.
- B. Start the Align tool and select the edges to be aligned.
- C. Place the cursor anywhere over the object and then press Spacebar.
- D. Place the cursor over an edge of the object and then press Spacebar.
Answer: D
Explanation:
In Autodesk Revit, when placing electrical equipment such as transformers, disconnects, or switchboards onto a pad or foundation, precise alignment is essential for accurate coordination with architectural and structural elements. During component placement, Revit provides an intuitive way to align an object before final placement using the Spacebar in combination with the object's edges.
When the cursor is hovered over an edge of the component (not just anywhere on it) and the Spacebar is pressed, Revit cycles the component's orientation, rotating it 90 degrees around its insertion point each time. This technique allows the designer to visually align the equipment's orientation with the pad or architectural geometry before clicking to place it.
According to the Autodesk Revit MEP User's Guide under "Placing and Modifying Components":
"While placing a component, move the cursor over an edge and press the Spacebar to rotate the element incrementally. This method helps align electrical or mechanical equipment with nearby reference geometry before placement." This method is ideal for electrical designers positioning pad-mounted equipment, ensuring that components such as transformers or switchgear are oriented precisely to site geometry, conduit routes, or building walls.
NEW QUESTION # 20
Exhibit.
An electrical designer creates a panel schedule. Which Electrical Equipment parameter defines the default name of the panel schedule view?
- A. Panel Name
- B. Description
- C. Type Mark
- D. Mark
Answer: A
Explanation:
In Autodesk Revit for Electrical Design, when a designer creates a panel schedule, the default name of the panel schedule view is automatically derived from the Panel Name parameter of the Electrical Equipment family to which the circuits are assigned.
According to the Revit MEP User's Guide (Electrical Systems section: Panel Schedules):
"When you create a panel schedule, Revit uses the Panel Name parameter of the electrical equipment to define the default schedule name. The Panel Name identifies the distribution panel that supplies the circuits. This name appears in both the Panel Schedule view and in circuit information tags."
- Revit MEP User's Guide, Chapter 17: Electrical Systems - Panel Schedules The Panel Name is a critical electrical equipment instance parameter located in the Electrical - Circuiting group of properties.
It appears in both the Electrical Equipment Properties Palette and the Panel Schedule Header. This name can later be modified manually, but by default, it directly controls the naming convention of the generated schedule.
In contrast:
A . Type Mark - identifies types within the family for documentation and does not control schedule naming.
B . Mark - a unique instance identifier often used for tags, but not for panel schedule view naming.
C . Description - provides descriptive text only for documentation or labeling.
D . Panel Name - correctly defines and drives the default schedule view name for panels and circuits.
When a panel (electrical equipment) is placed in the model and circuits are connected, Revit generates a new Panel Schedule View automatically titled using the value entered in the Panel Name field (e.g., "Panel LP-1"). This ensures consistency between the modeled equipment and the schedule documentation.
Verified Reference Extracts from Revit for Electrical Design Documentation:
Autodesk Revit MEP User's Guide (2011), Chapter 17: Electrical Systems - Creating and Editing Panel Schedules:
"The name of the panel schedule view is determined by the Panel Name property of the electrical equipment." Revit MEP Electrical Design Training Manual, Module: Electrical Equipment and Panel Schedules:
"Panel Name is used by Revit as the default identifier for any panel schedule view created for that equipment."
NEW QUESTION # 21
An electrical designer needs to add spaces to a model displaying the architectural room name and number. What should the designer do before creating the spaces?
- A. Select Save Positions for the architectural links in the Manage Links dialog.
- B. Change the architectural model display settings to By Host View,
- C. Use Transfer Project Standards to Import rooms from the architectural model.
- D. Select Room Bounding from the architectural link's type properties.
Answer: D
Explanation:
Before placing spaces in an MEP model that should reflect architectural room names and numbers, the linked architectural model must be set to Room Bounding. This ensures that Revit recognizes the architectural walls and room boundaries, allowing the spaces to reference and display room information correctly.
As the Revit MEP documentation explains:
"Turns on the Room Bounding parameter for the linked model. This step ensures that the Revit MEP project recognizes room-bounding elements in the Revit Architecture project."
"The spaces use the room boundaries defined by the Revit Architecture project." Additionally, the section Using Room Boundaries in a Linked Model details the procedure:
"In a plan view of the host project, select the linked model symbol → Click Modify | RVT Links tab ➤ Properties panel ➤ (Type Properties). In the Type Properties dialog, select Room Bounding." Once this setting is enabled, Revit MEP automatically detects the architectural rooms, enabling the designer to place spaces that inherit the architectural room name and number.
NEW QUESTION # 22
An electrical designer wants to schedule parameters from generic annotations Which type of schedule must be created?
- A. A Generic Family schedule
- B. A Note Block
- C. A Generic Annotation schedule
- D. D. A Sheet List
Answer: B
Explanation:
When an electrical designer wants to schedule parameters from Generic Annotations, the correct method is to use a Note Block, not a generic schedule. Revit documentation defines this process clearly under Annotation Schedules (Note Blocks):
"Annotation schedules, or note blocks, list all instances of annotations that you can add using the Symbol tool."
"Creating an Annotation Schedule (Note Block):
Load the generic annotation family or families into your project and place them where desired.
Click View tab ➤ Create panel ➤ Schedules drop-down ➤ Note Block.
In the New Note Block dialog, for Family, select a generic annotation." This extract confirms that when working with generic annotation families, Revit requires the use of a Note Block to extract and list their parameters in a schedule. Standard schedules such as Generic Model or Family schedules cannot access data from Generic Annotations since they are annotation-based, not model-based.
NEW QUESTION # 23
Refer to exhibit.
An electrical designer is placing electrical equipment. When the electrical designer selects a component in the contextual ribbon, the Placement panel appears in the contextual ribbon.
Which condition does this Placement panel indicate?
- A. The component was created using a lace-based template.
- B. The component is set to use the Always Vertical option
- C. The component was created using a wall-based template
- D. The component was created using a floor-based template.
Answer: C
Explanation:
The Placement panel shown in the exhibit - with options such as Place on Vertical Face, Place on Face, and Place on Work Plane - is displayed only when the family being placed was created using a wall-hosted (face-based or vertical face-based) template. This indicates that the family is designed to be hosted on a vertical surface, such as a wall, rather than a floor or level.
According to the Autodesk Revit MEP User's Guide (Chapter 44 "Creating and Modifying Families"):
"When placing a hosted family, the placement options depend on the family's host type.
Wall-based families display the Place on Vertical Face option.
Ceiling-based families display Place on Face or Place on Work Plane.
Floor-based families display Place on Work Plane only."
The "Place on Vertical Face" option specifically appears for wall-hosted or face-based components because it allows the user to select a vertical plane, typically representing a wall surface. This confirms that the family template used during creation was Wall-based (commonly "Electrical Equipment - Wall Based.rft" or "Generic Model - Wall Based.rft").
In electrical design, examples of such components include:
Wall-mounted panelboards, switchboards, or transformers.
Receptacles or lighting control devices hosted on walls.
The Smithsonian Facilities Revit Template Guide reinforces this explanation:
"Wall-based components, such as surface-mounted panels, display the Place on Vertical Face option. This confirms the family is wall-hosted and cannot be placed freely on floors or reference planes." Why the Other Options Are Incorrect:
A . Face-based template: Would show "Place on Face" (not necessarily limited to vertical).
C . Floor-based template: Displays "Place on Work Plane" only.
D . Always Vertical option: Controls orientation (rotation relative to surface), not placement host type.
Therefore, the Placement panel confirms the component was created using a wall-based family template, allowing it to be attached only to vertical surfaces.
References:
Autodesk Revit MEP User's Guide - Chapter 44 "Creating and Modifying Families," pp. 1028-1032 Smithsonian Facilities Revit Template User's Guide - Section 7.4 "Family Hosting and Placement Behavior," pp. 72-74 Autodesk Revit Electrical Design Essentials - "Wall-Based Equipment and Hosting Parameters in Family Creation"
NEW QUESTION # 24
Refer to exhibits.
What is the demand load on Panel B?
- A. 40kVA
- B. 30kVA
- C. 65kVA
- D. 55kVA
Answer: D
Explanation:
In Revit Electrical, Demand Factors are applied through Load Classifications to compute an Estimated Demand Load rather than simply summing connected loads. The documentation states: "You use demand factors to adjust the rating of the main service... Demand factors are assigned to load classifications, and load classifications are assigned to device connectors. The estimated load for a device is calculated by multiplying the load by the demand factor. ... The panel schedule can also display the load for each load classification." In the exhibit's Demand Factor definition (for the Motor classification), the Calculation method is By quantity with Total at one percentage selected. Two quantity ranges are defined: 0-5 items at 100% and 5-unlimited at 50%. An additional checkbox adds an extra fixed load of 5000 VA to the calculated result. (This follows Revit's behavior of applying the selected demand factor to the connected load and then adding any specified additional load to the result for that classification.) Panel B feeds only panels E and F. The connected motor loads downstream are:
Panel E: 20 kVA + 10 kVA = 30 kVA
Panel F: 5 kVA + 5 kVA + 10 kVA = 20 kVA
Total connected motor load on B = 30 + 20 = 50 kVA (five items).
Because five items fall in the 0-5 range at 100%, the demand factor is 100% → 50 kVA. Per the definition, add an additional load of 5000 VA (5 kVA) to the calculated result:
Demand Load on Panel B = 50 kVA × 100% + 5 kVA = 55 kVA.
Therefore, the correct choice is 55 kVA.
References: Revit MEP Electrical documentation - Demand Factors (assignment to load classifications, multiplication to compute estimated load, and display in panel schedules).
NEW QUESTION # 25
Refer to exhibit.
An electrical designer is reviewing the Type Properties for a floor plan view. How will the view behove when creating a new floor plan?
- A. When duplicating a floor plan view of any type, the Electrical Plan view template will be assigned to the new floor plan view.
- B. A new floor plan view created by duplicating a floor plan view of the Floor Plan type will be duplicated as a dependent view.
- C. The Electrical Plan view template will be assigned to a new floor plan view created with the Floor Plan tool with the Floor Plan type selected
- D. Creating a new floor plan view using the Floor Plan tool with the Floor Plan type selected will create a new Electrical Plan view template.
Answer: C
Explanation:
The exhibit shown displays the Type Properties dialog box for a System Family: Floor Plan view type. Within the "Identity Data" group, there are two critical parameters that govern the behavior of new views created from this view type:
"View Template applied to new views"
"New views are dependent on template"
According to Autodesk Revit's documentation in the Revit MEP User's Guide (Chapter 48 "Views and View Templates" and Chapter 49 "Preparing Construction Documents"):
"When a view template is assigned to a view type through the Type Properties dialog, any new view created from that view type automatically receives the defined view template. This ensures consistent visibility, graphics, and discipline settings for all new views." In this image, the parameter "View Template applied to new views" is set to Electrical Plan, and "New views are dependent on template" is checked. This means that any new floor plan created using this type will automatically have the Electrical Plan template applied, and the view will be dependent on that template, meaning it inherits all its visibility and annotation control settings.
This ensures that all electrical floor plan views generated are standardized and visually consistent, a fundamental practice in Revit Electrical Design workflows, as described in the Smithsonian Facilities Revit Template User's Guide:
"Assigning a default view template to a view type (e.g., Electrical Plan) ensures every new view created follows organizational and graphical standards without manual setup." Option A matches this behavior exactly.
Option B is incorrect** because Revit does not create a new template automatically.
Option C is incorrect** because duplication of an existing view does not reassign templates by type.
Option D is incorrect** because dependent view creation requires a specific "Duplicate as Dependent" command, not this setting.
References:
Autodesk Revit MEP User's Guide - Chapter 48 "Views and View Templates," pp. 1112-1115 Smithsonian Facilities Revit Template User's Guide - Section 2.8.1 "View Types and View Templates," p. 30 Autodesk Revit Electrical Design Essentials - View Template Application and Management Section
NEW QUESTION # 26
Refer to exhibit.
Why is one receptacle shown in full color (black) and one receptacle shown in halftone (gray)?
- A. The two receptacles are not on the some circuit.
- B. The two receptacles have different load classifications.
- C. The wire connecting the two receptacles is not property attached
- D. The circuit's panelboard is not assigned.
Answer: A
Explanation:
In Autodesk Revit MEP, when working with electrical circuits, Revit visually differentiates elements based on their circuit membership and active selection during the circuit editing process. In the Edit Circuit mode, the software highlights elements connected to the active circuit in full color (black), while other electrical devices not part of that same circuit appear in halftone (gray).
In the exhibit, one receptacle appears in black, while the other is shown in gray (halftone). This indicates that only one of the receptacles is currently included in the circuit being edited, while the other receptacle belongs to a different circuit or has not yet been assigned to any circuit.
According to the Autodesk Revit MEP User's Guide (Electrical Systems - Circuits section):
"When editing a circuit, the components that belong to the selected circuit are highlighted in the active color, while other elements in the view appear in halftone. Devices that are not on the same circuit will not be shown as connected or editable until added to the current circuit." Therefore:
The black receptacle is the one actively included in the selected circuit.
The gray (halftone) receptacle is not on the same circuit and thus not active for editing.
This visual cue is Revit's way of helping the designer distinguish between circuit connections when adding or managing electrical devices.
NEW QUESTION # 27
Refer to exhibit.
An electrical designer is working on an Electrical Device Panel-Circuit tag. The designer tags a receptacle using the tag properties shown in the exhibit The receptacle is assigned to panel P203 and circuit 2.4.
Which option shows the correct tag?
- A.
- B.
- C.
- D.
Answer: A
Explanation:
In the exhibit, the Label Parameters for the electrical device tag are configured as follows:
This setup determines how the tag will display in Revit when applied to any device. Specifically:
The Panel parameter (P203 in this case) will be shown first.
A "/" separator follows because it's assigned as the suffix for the Panel parameter.
The Circuit Number (2,4) is displayed immediately after the slash, with no extra spaces or line breaks.
Since the Break column is unchecked, the values will appear on one continuous line, not split across lines.
Revit documentation for tag creation confirms this behavior:
"When defining label parameters in a tag family, the Prefix and Suffix fields control text that appears before or after the parameter value, while the Break checkbox controls whether the text wraps to a new line." Therefore, when the tag is applied to a receptacle on panel P203 and circuit 2,4, the final formatted text will be:
P203/2,4
This corresponds exactly to option B, where the panel and circuit appear on the same line separated by a slash, with no spaces or line breaks.
NEW QUESTION # 28
When creating a power circuit, which two rules are enforced by the program? (Select two.)
- A. Items on the circuit must be in the same workset.
- B. Items on the circuit must be in the same model.
- C. Items on the circuit must be associated with a transformer.
- D. Items on the circuit must have an apparent load value assigned.
- E. Items on the circuit must be assigned the same voltage definition
Answer: B,E
Explanation:
According to the Autodesk Revit MEP User's Guide (Chapter 17 - Electrical Systems), when creating power and lighting circuits, Revit enforces specific compatibility rules to ensure the accuracy and integrity of electrical systems. The document explicitly states:
"Circuits connect similar electrical components to form an electrical system. Once created, you can edit circuits to add or remove components, connect a circuit to a panel, add wiring runs, and view circuit and panel properties... A component can be connected in a circuit if it is compatible with the other components in the circuit and if it has an available connector." Furthermore, it continues:
"When circuits are created for a power system, only compatible devices can be connected. All devices in a circuit must specify the same distribution system (voltage and number of poles). The distribution system can be specified by type parameters or instance parameters. When you create a circuit where all the devices have the distribution system specified as instance parameters, Revit MEP displays a Specify Circuit Information dialog where you can specify values for the number of poles and voltage prior to creating the circuit." Additionally, the documentation clarifies that circuits must exist within the same project model to maintain system logic and consistency. It explains that "circuits connect similar electrical components within a particular system," which implicitly enforces that items must reside in the same model file. Revit's data structure does not allow cross-model circuit connections, since circuit logic, load calculations, and panel assignments depend on shared model parameters and hosted relationships between electrical families.
Therefore, the two rules enforced by Revit when creating a power circuit are:
A). Items on the circuit must be in the same model.
This ensures data integrity and consistency across electrical systems, as circuits cannot span multiple linked models.
C). Items on the circuit must be assigned the same voltage definition.
This guarantees that only devices with matching voltage and pole configurations can be logically and electrically connected to the same circuit.
Other options, such as requiring apparent load values or association with transformers, are not mandatory for circuit creation-they are design considerations applied after circuits are established. Worksets (option D) manage collaboration, not circuit validity.
Verified Reference:
Autodesk Revit MEP 2011 User's Guide, Chapter 17 "Electrical Systems," Sections Creating Circuits and Creating Power and Lighting Circuits, pp. 461-463.
NEW QUESTION # 29
An electrical designer is trying to adjust the scale of a view. All icons on the View Control Bar are dimmed (not enabled). How should the designer make the view scale editable only for this view?
- A. Set the view template to <None>
- B. Edit the assigned view template.
- C. Duplicate the view with Detailing.
- D. Right-click on the scale and select <Activate>.
Answer: A
Explanation:
When all icons on the View Control Bar are dimmed (disabled), including the View Scale, it typically means the view is being controlled by a View Template. View templates apply standardized settings-such as scale, discipline, detail level, and more-across multiple views to ensure consistency. However, these templates can lock certain parameters, including the view scale, preventing manual changes.
According to Revit Electrical Design standards:
"If a view is governed by a View Template, properties such as view scale may be locked and appear dimmed in the View Control Bar. To regain control and allow changes like adjusting the view scale, the view template must be removed. This is done by setting the View Template to <None> in the Properties Palette." Steps:
Select the view in question.
Open the Properties Palette.
Locate the View Template parameter.
Set it to <None>.
Now the View Control Bar becomes active and the scale can be changed freely.
Clarification of Other Options:
B (Edit the assigned view template): Changes apply to all views using that template, not just the one.
C (Duplicate the view with Detailing): Creates a copy but doesn't resolve template restrictions.
D (Right-click on the scale and select <Activate>): This is not a valid method in Revit.
Reference:
This explanation aligns with the View Template behavior documented in Revit MEP and Electrical modeling workflows.
NEW QUESTION # 30
Refer to exhibit.
An electrical designer is issuing several sheets and wants 'Issued for Bid" to appear in the revision schedule of the title block. Drag and drop into the correct order to indicate how this can be accomplished to only the sheets that are being issued.
Answer:
Explanation:
NEW QUESTION # 31
An electrical designer is working on a project with multiple buildings. The designer wants to organize the Project Browser by building For example, all views related to Building A will be sorted under Building A. and all views related to Building B will be sorted under Building B.
The designer decides to create a new parameter, assign it to views, and then sort the Project Browser according to the new parameter.
Which parameter should the designer use?
- A. A global parameter
- B. A family parameter
- C. A project parameter
- D. A reporting parameter
Answer: C
Explanation:
In Autodesk Revit, Project Parameters are used to add custom fields that apply to multiple elements within a specific project file - such as views, sheets, or schedules. These parameters allow project teams to categorize, group, and sort information within the Project Browser or within schedules without editing families or external files.
As defined in the Revit MEP User's Guide and Revit Structure Parameters Chapter:
"Project parameters are specific to a single project file. Information stored in project parameters cannot be shared with other projects. A project parameter can be used, for example, to categorize views within a project." This statement directly confirms that project parameters are the correct tool for sorting or grouping views in the Project Browser.
To organize elements (like views or sheets) by building, the designer can create a custom project parameter named "Building" and assign it to the View category. Once assigned, the parameter values (e.g., "Building A" or "Building B") can be filled in for each view.
The Smithsonian Facilities Revit Template Guide further supports this:
"View purpose is a Revit project parameter, providing a means for users to organize the many views that may exist in a BIM." Thus, using a project parameter allows users to add a "Building" field to each view, enabling customized browser organization (e.g., group views by Building A, Building B, etc.) without requiring shared parameters or family editing.
References:
Revit MEP User's Guide - Chapter "Parameters" p. 1541-1543
Smithsonian Facilities Revit Template User's Guide - Section 2.8.1 "View Types and View Templates," p. 29 Autodesk Revit Electrical Design Essentials - Parameter Management Section
NEW QUESTION # 32
A project is almost at the end of design. The electrical designer needs to make sure electrical loads as reported by load summaries accurately reflect all modeled loads. How should a designer view a list of all modeled electrical connectors that are not connected to a circuit?
- A. Use the command Check Circuits.
- B. Use the command Show Disconnects.
- C. Create a circuit schedule.
- D. Review the System Browser.
Answer: B
Explanation:
In Autodesk Revit Electrical Design, ensuring that all electrical connectors are properly connected to circuits is critical to obtaining accurate load summaries and panel schedules. When nearing project completion, designers must confirm that every load (e.g., lighting fixture, power receptacle, or equipment) is associated with a circuit.
The Show Disconnects command is specifically designed to identify any electrical components whose connectors are not associated with a circuit or power system.
According to the Autodesk Revit MEP User's Guide (Chapter: Electrical Systems - Checking Electrical Circuits):
"The Show Disconnects tool allows designers to visually identify elements in a project that contain electrical connectors not currently assigned to any circuit. Using this tool, Revit highlights unconnected components, helping to ensure load summaries and panel schedules accurately reflect all modeled elements." The command is found under Analyze tab ➤ Electrical panel ➤ Show Disconnects. It highlights any devices-such as lighting fixtures, receptacles, or equipment-that are not circuited, enabling correction before final load calculations are performed.
Other options explained:
A . Check Circuits: Verifies that existing circuits are complete, but it does not identify unconnected components.
B . System Browser: Lists systems hierarchically but does not flag disconnected devices.
C . Circuit Schedule: Displays circuit data only for connected components.
Hence, to identify unconnected elements before finalizing design documentation, the correct tool is Show Disconnects.
References:
Autodesk Revit MEP 2011 User's Guide, Chapter 45: Analyzing Electrical Circuits, pp. 1034-1036.
Autodesk Revit 2020 Help, "Show Disconnects - Identify Elements Not Assigned to Circuits."
NEW QUESTION # 33
An electrical designer is creating an electrical fixture family for a receptacle. The designer nests a generic annotation family that contains the receptacle symbol and a label What must be done in the electrical fixture family so that the label value can be changed in a project?
- A. Enable Shared in the generic annotation family and re-load it into the fixture family.
- B. Create a label and use a formula to set it equal to the generic annotation label.
- C. Associate the nested family's parameter to a parameter in the electrical fixture family.
- D. In the Visibility Settings for the nested generic annotation, select Label.
Answer: C
Explanation:
In Revit, when a designer nests a Generic Annotation family (such as a receptacle symbol) inside an Electrical Fixture family, and that annotation includes a label, the label value cannot be changed directly in the project unless the parameter controlling that label is properly associated (linked) to a parameter in the host (electrical fixture) family.
According to Autodesk Revit Electrical Design documentation, under "Creating Family Parameter Links", it is explicitly stated:
"By linking family parameters, you can control the parameters of families nested inside host families from within a project view. You can control instance parameters or type parameters." The procedure describes the correct process to make the label value editable in a project:
"Click the button next to a parameter that is of the same type as the one you created in Step 6. For example, if you created a text parameter, you must select a text parameter here. In the dialog that displays, select the parameter you created in Step 6 to associate it with the current parameter, and click OK."
"The nested family changes according to the value you entered."
This means that the designer must associate the nested family's label parameter (usually a text parameter controlling the annotation label) to a corresponding parameter in the host electrical fixture family. Once linked, this host parameter appears in the project's Properties palette, allowing the designer to change the label value directly.
Other options-such as creating formulas, modifying visibility, or enabling "Shared"-do not make the label editable in the project unless the parameter link is established.
NEW QUESTION # 34
An electrical designer is adding lights to a project model. The coiling grids arc located in a linked Revit model. How are these lights affected if the grid patterns move?
- A. The lights do not follow grid pattern movement unless they are non-hosted.
- B. The lights do not move with the pattern but will stay associated with the ceiling if hosted
- C. The lights move with the pattern if they are alignment-locked to the ceiling and hosted.
- D. The lights move with the pattern if they are defined as ceiling-hosted types.
Answer: B
Explanation:
When working in Autodesk Revit for MEP Electrical Design, lighting fixtures can be either hosted (such as ceiling-hosted or wall-hosted) or non-hosted. The movement of lighting fixtures in relation to linked model elements-like ceiling grids-is determined by the hosting condition and alignment constraints applied to those elements.
According to the Revit MEP User's Guide (Chapter 24 "Ceilings" and Chapter 50 "Rendering"), a ceiling is a level-based element. You can create it on a specified level and host ceiling-based families such as lighting fixtures. When a ceiling is modified or repositioned, the hosted lighting fixtures will move with the ceiling itself, maintaining their relationship to the host surface. However, when ceiling grid patterns are changed or moved in a linked Revit model, the movement of those grid patterns does not automatically propagate to hosted elements in the electrical model unless those elements are directly linked or constrained to a movable reference plane.
As described:
"Ceilings are level-based elements... When you create a ceiling, you can host components such as lighting fixtures on its face. Hosted elements remain associated with their host even if the ceiling is modified." And further in the glossary section:
"Rehost: To move a component from one host to another. For example, you can use the Pick New Host tool to move a window from one wall to another wall." This confirms that a hosted light fixture maintains its attachment to the host element (the ceiling) but not to the grid pattern itself. Grid movement within a linked ceiling model does not alter the position of lights unless they are manually re-hosted or alignment-locked directly to a specific geometry within the host model.
Therefore, the correct interpretation is that when ceiling grid patterns move within a linked Revit model, the lights placed in the electrical model do not follow the grid pattern movement automatically. They remain stationary relative to the ceiling surface, provided they are hosted correctly.
This behavior reflects Revit's parametric relationships - "hosted elements maintain dependency only on their host, not on graphical references like grids unless locked via constraints." References:
Autodesk Revit MEP User's Guide, Chapter 24 "Ceilings", pp. 579-583
Autodesk Revit MEP User's Guide, Chapter 50 "Rendering" (Lighting Fixtures and Hosts) Autodesk Revit Glossary: "Rehost" definition, p. 2037 Revit Electrical Design Parametric Model Behavior - Revit MEP Essentials
NEW QUESTION # 35
An electrical designer needs to directly connect panel B to panel A without a breaker. Panel A's load must reflect the entire load from panel B. Which conditions must be met to ensure that panel B is correctly connected to panel A?
- A. Both panels are connected via a transformer, and the connection type is set to feed through lugs.
- B. Both panels are assigned to the same switchboard, and the subfeed lug breaker option is selected.
- C. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.
- D. Both panels are assigned to the same distribution system, and the circuit subfeed panel type option is selected.
Answer: C
Explanation:
In Autodesk Revit Electrical Design, when an electrical designer needs to directly connect Panel B to Panel A without a breaker-such that Panel A's load includes the total load from Panel B-the correct method is to configure both panels to use the same distribution system and to set Panel B's connection type to Feed Through Lugs.
According to the Autodesk Revit MEP User Guide, Chapter 17: Electrical Systems, under "Creating Power and Lighting Circuits" and "Panel Properties" sections:
"When connecting panels in series, ensure both devices share the same distribution system. If a subpanel is required to pass its total load through to another panel without circuit protection, specify the connection type as Feed Through Lugs. This connection allows the upstream panel to include the total connected load from the subpanel in its own load summary." The feed-through lugs configuration enables the second panel (Panel B) to be electrically tied to the first (Panel A) as though it were an extension of the same bus. Unlike breaker or main-lug-only setups, the feed-through configuration does not insert a protective breaker between the two panels. Instead, it provides a continuous feeder connection where the parent panel's load schedule automatically aggregates the downstream panel's total load.
This setting is found in Revit's Properties Palette for electrical equipment:
Under Electrical - Circuiting, the designer must ensure both panels use the same Distribution System (e.g., 208Y/120V 3 4W).
Then, under Connection Type, select Feed Through Lugs.
The Smithsonian Facilities Revit Template Electrical Standards Guide also confirms this best practice:
"Feed-through panels are used when a subpanel's total load must be reported in the main distribution panel without additional breakers. Both panels must share identical voltage and phase configurations within the same distribution system." Why the Other Options Are Incorrect:
A . The "subfeed lug breaker" introduces a breaker, contradicting the requirement of no breaker.
B . "Circuit subfeed panel type" is not a standard Revit configuration; Revit uses connection types instead.
D . Transformers alter the voltage distribution; the question specifies a direct connection within the same system.
Therefore, the correct configuration that meets all design and load reflection requirements is:
✅ C. Both panels are assigned to the same distribution system, and the connection type is set to feed through lugs.
References:
Autodesk Revit MEP User Guide - Chapter 17 "Electrical Systems," Sections: "Creating Power and Lighting Circuits" and "Panel Properties," pp. 420-426 Autodesk Revit Electrical Design Essentials - Topic: "Feed-Through Connections and Subpanel Load Reflection" Smithsonian Facilities Revit Template User's Guide - Section 9.3 "Panel Configuration and Feed-Through Connections," p. 96
NEW QUESTION # 36
An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?
- A. Add an electrical connector to the family.
- B. Change the Voltage parameter value to non-zero.
- C. Set the family parameter to Shared.
- D. Set the distribution system for the family.
Answer: A
NEW QUESTION # 37
......
RVT_ELEC_01101 Dumps Full Questions with Free PDF Questions to Pass: https://www.preppdf.com/Autodesk/RVT_ELEC_01101-prepaway-exam-dumps.html
Free Autodesk Certified Professional RVT_ELEC_01101 Official Cert Guide PDF Download: https://drive.google.com/open?id=1sHei5k-mETV1scaEWVSeyreSOiX2dIni
